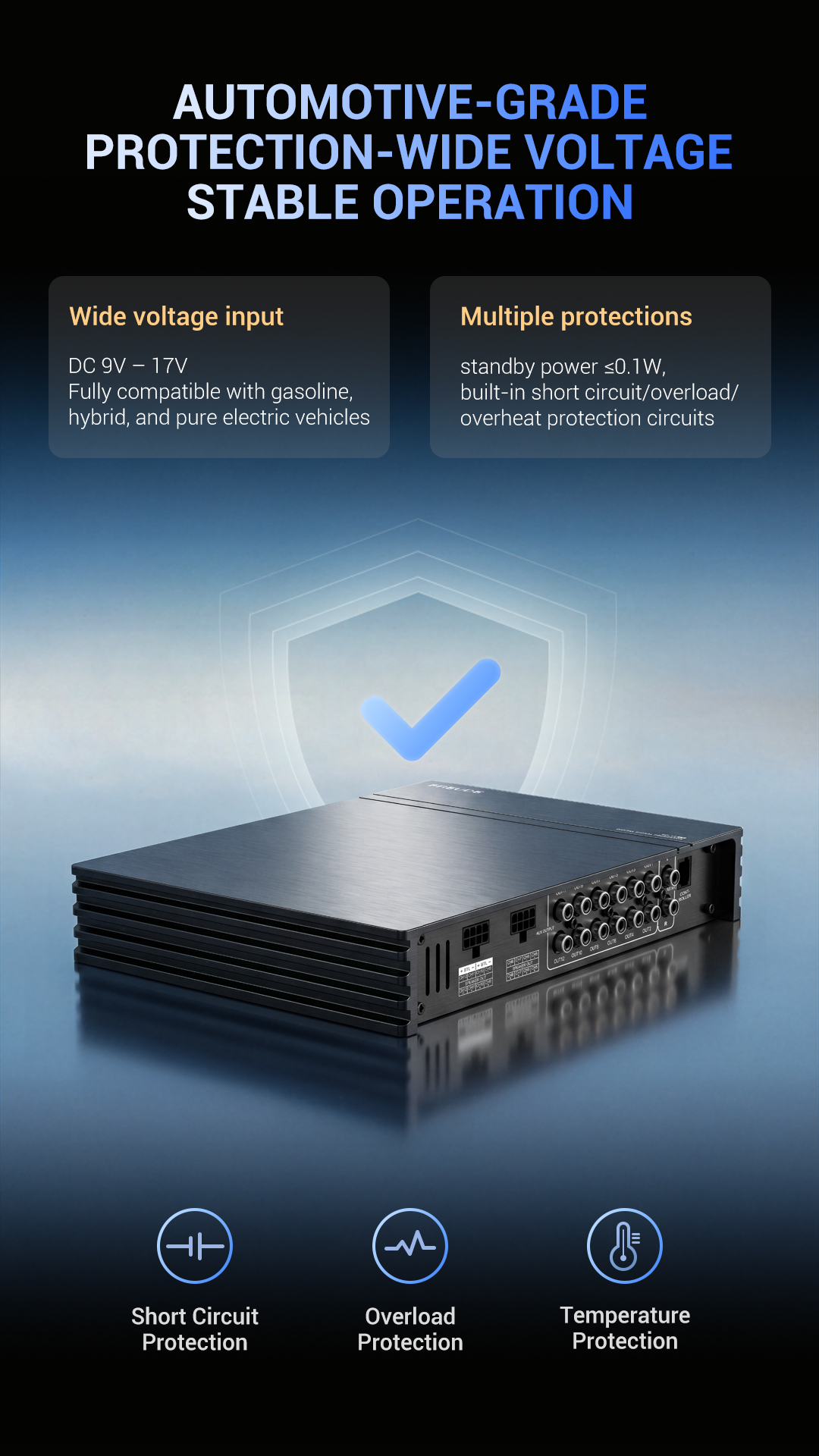

■ Wide voltage design: 9V – 17V DC

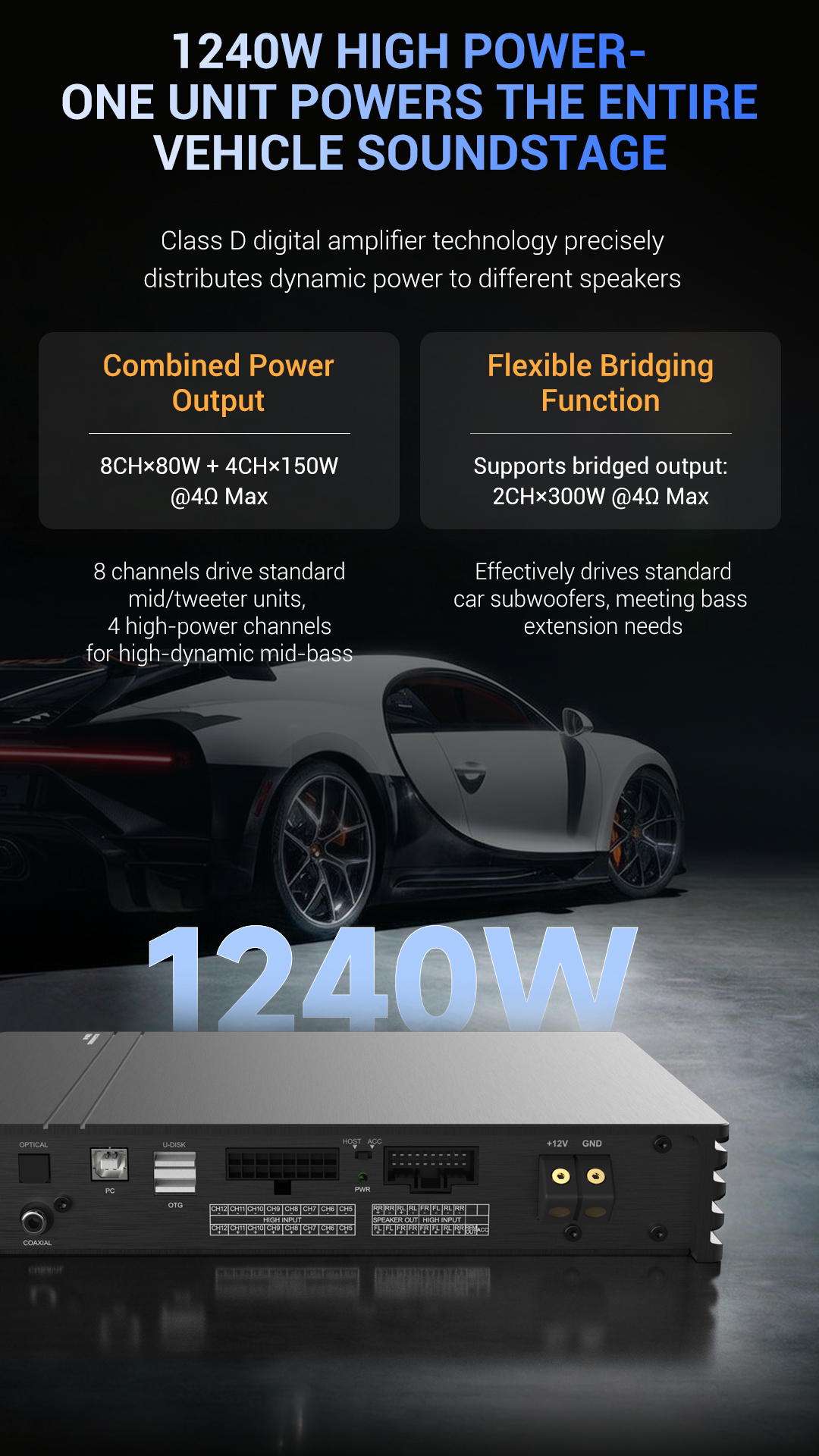

■ Built-in Class D amplifier: Max Power up to 8 × 80W + 4 × 150W (Bridge 2 x 300W) @ 4Ω

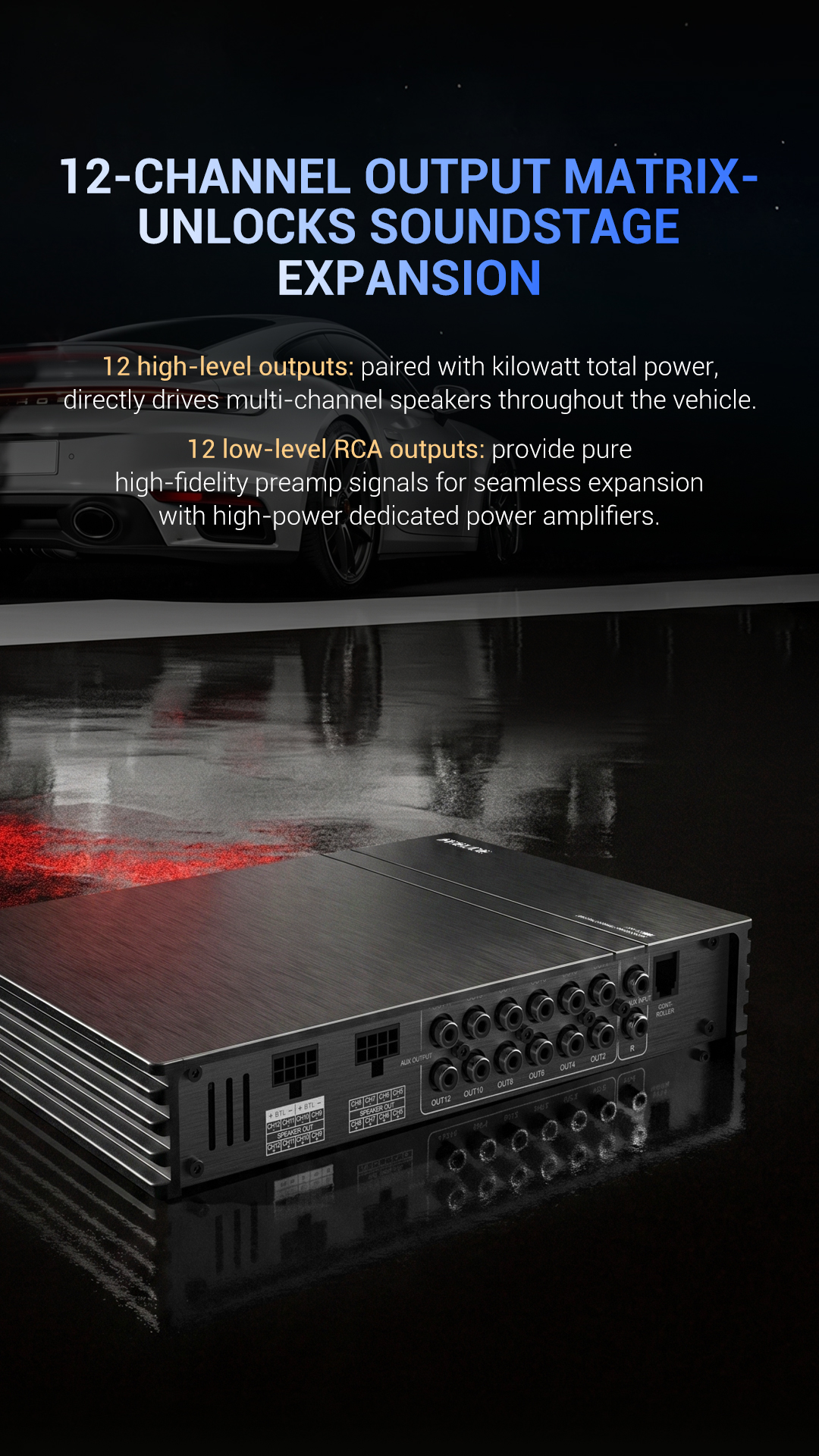

■ 12ch AUX outputs, 12ch high-level outputs

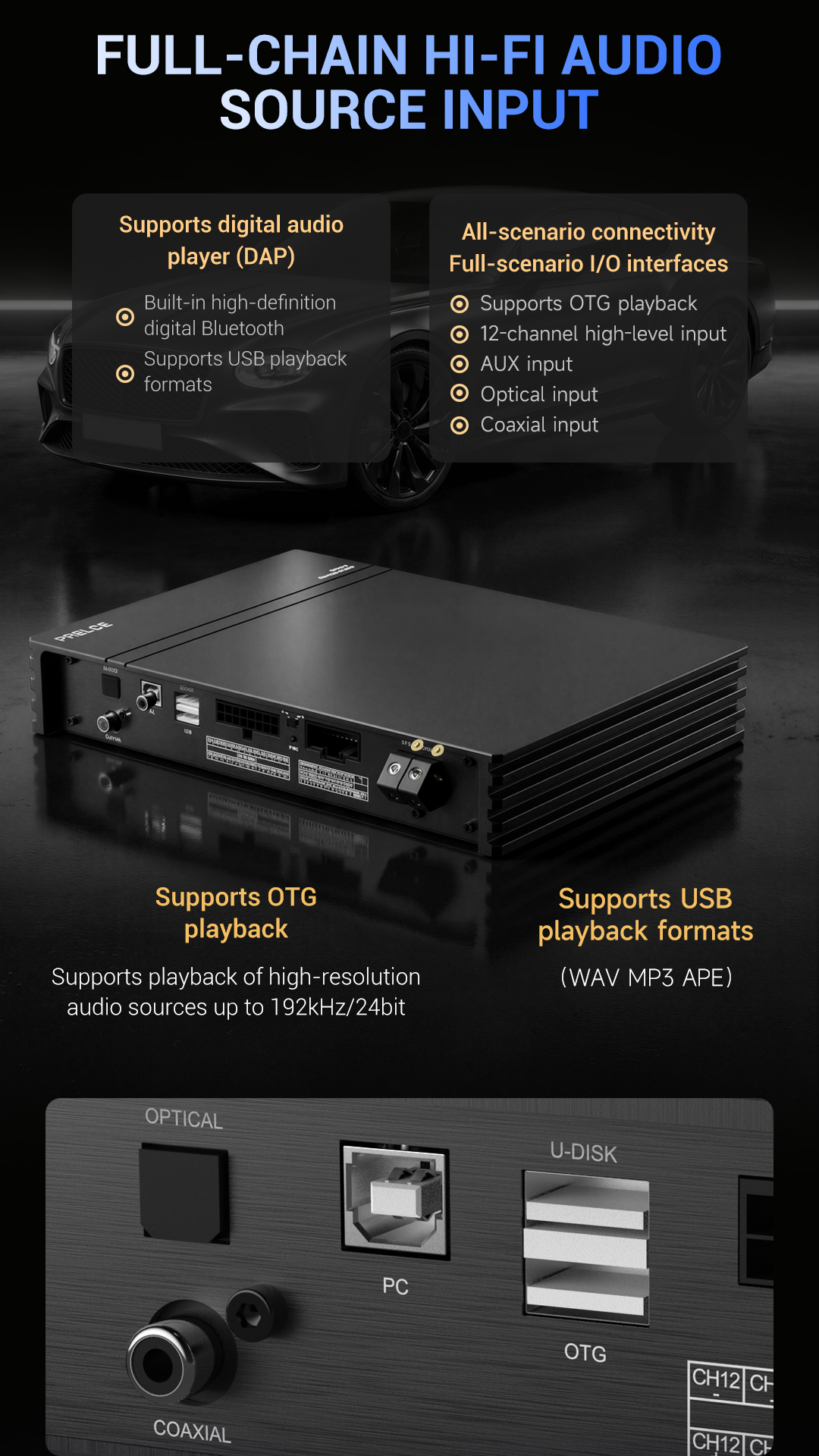

■ 12ch of high-level, 2ch AUX, Coaxial, optical, Digital BT, USB, OTG input

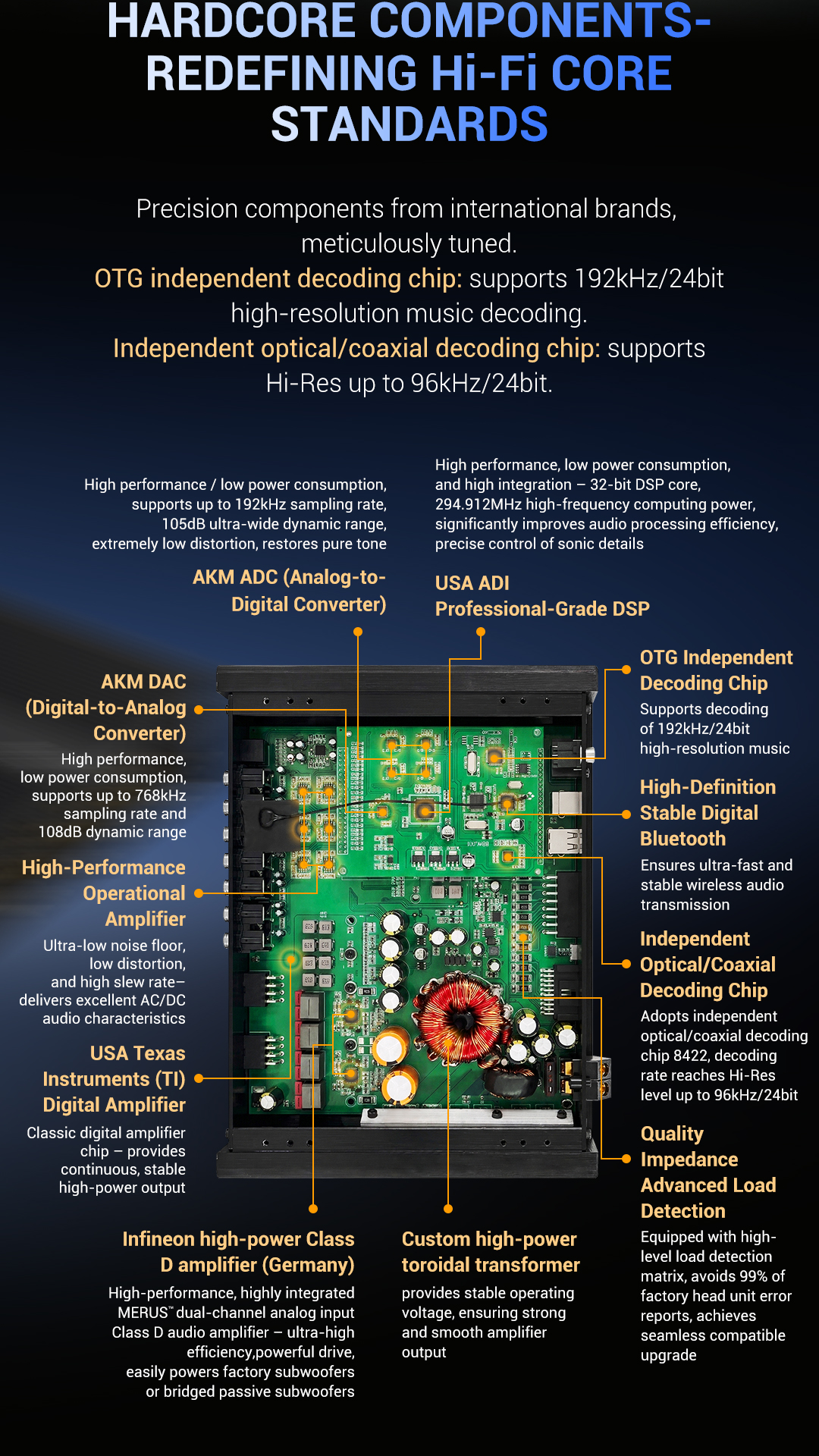

■ High-quality electronic components

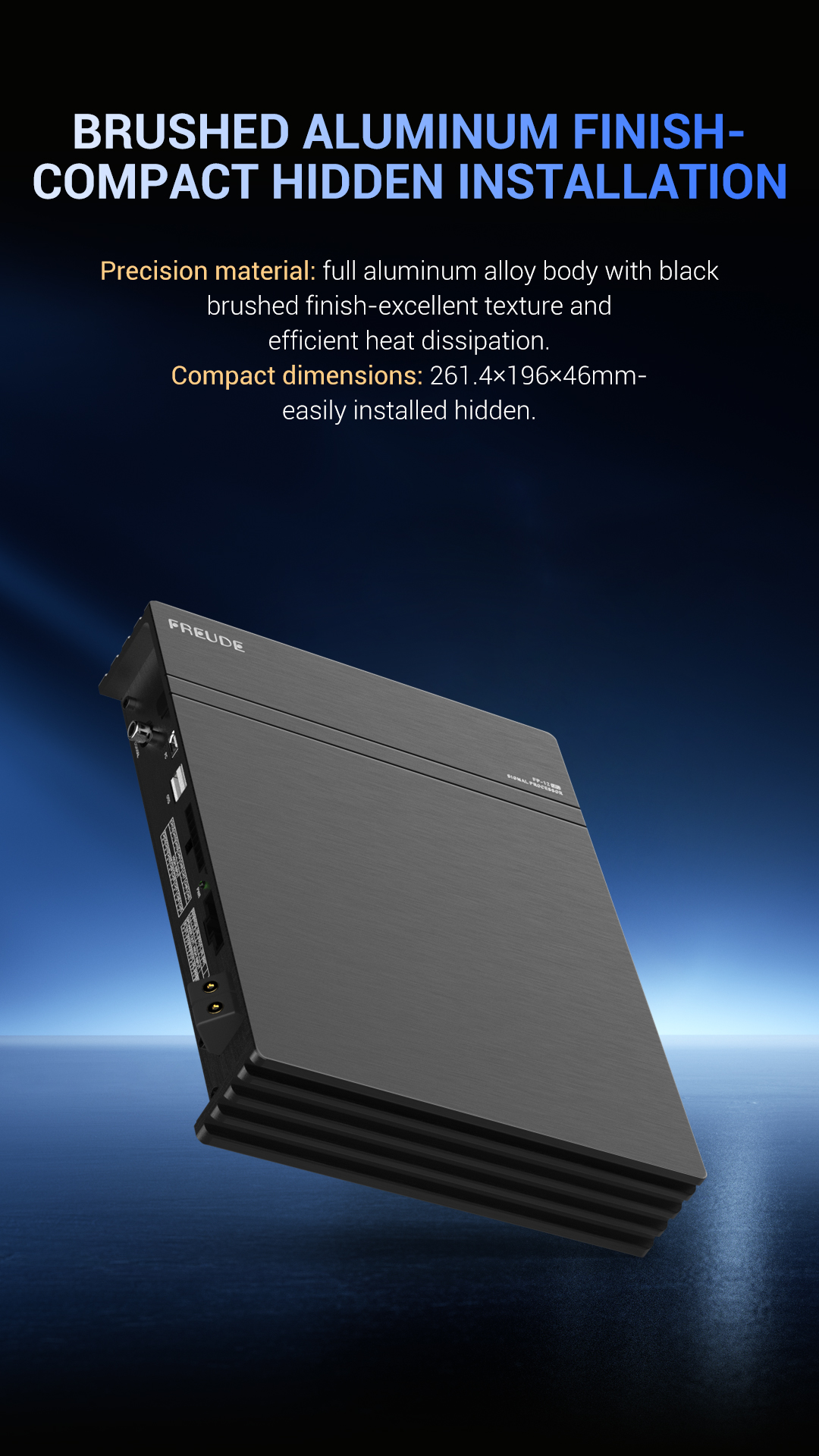

■ All-aluminum chassis for excellent heat dissipation
■ PC tuning -- AUDIO ARCHITECT
■ Plug-and-play, non‑destructive installation

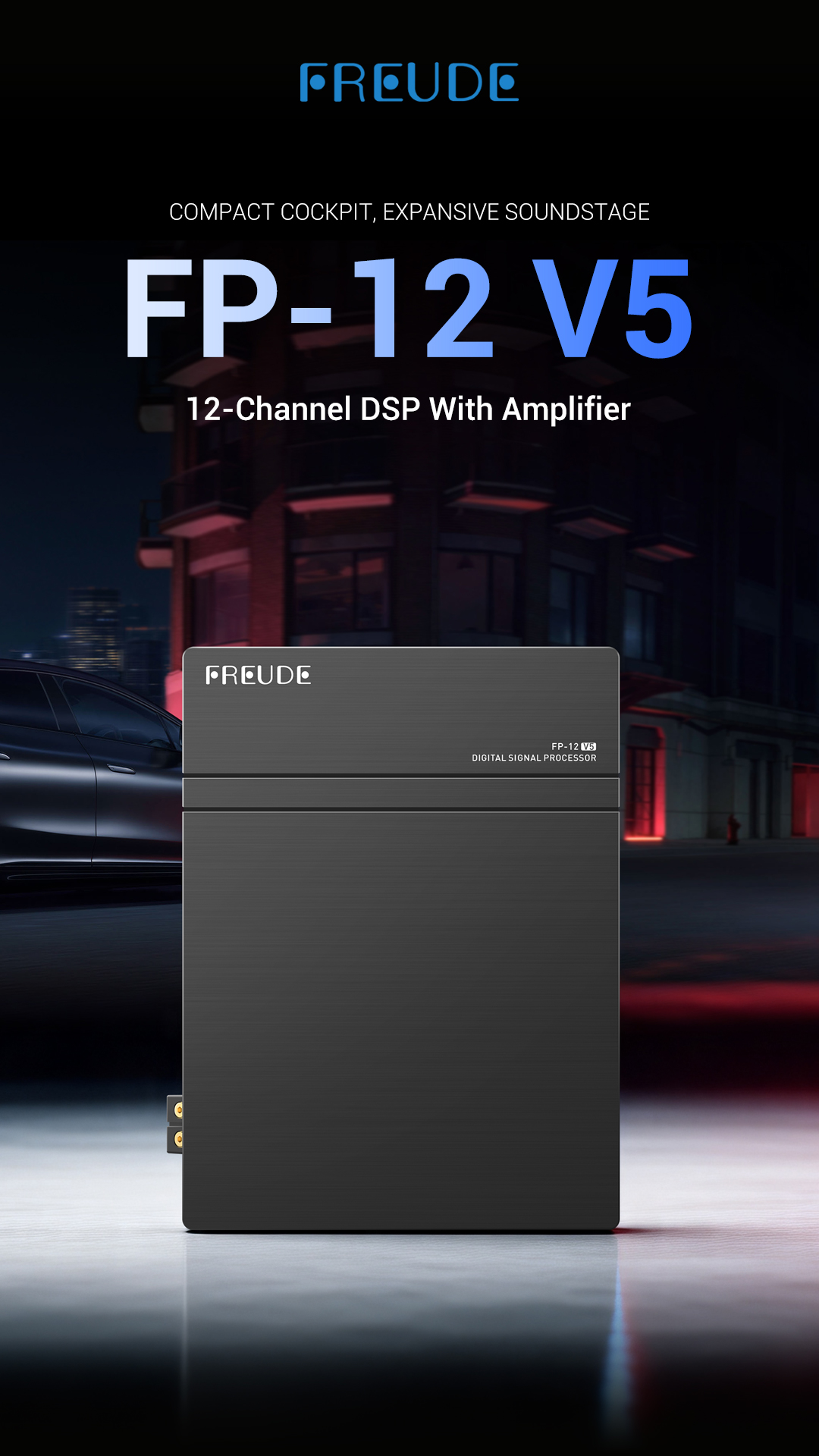

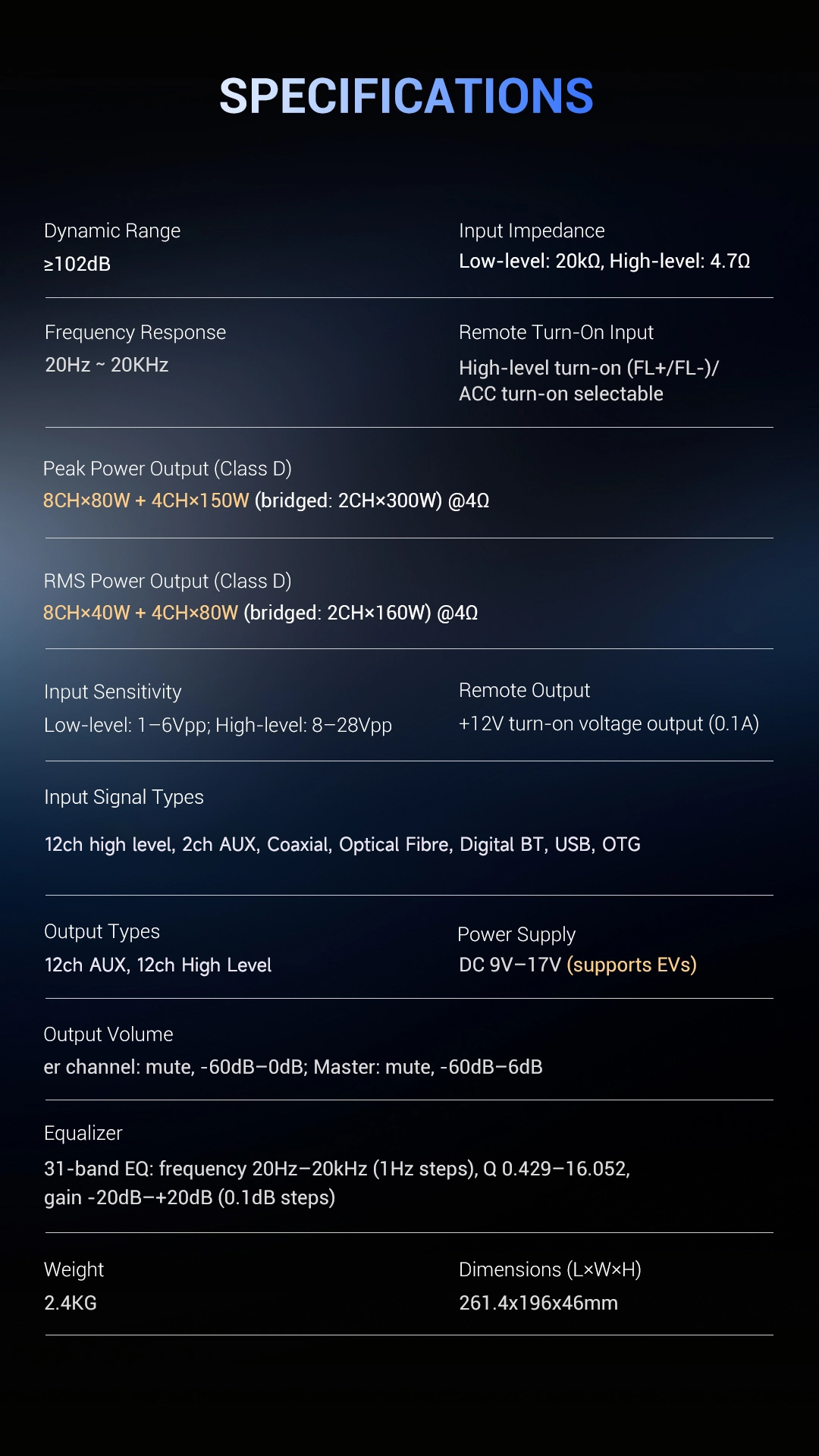

| Model: |
FP-12 V5 |
| Type: |
12 ch DSP with Amplifier |
| Power: |
DC 9 V～17 V |
| Input Signal Type: |
12ch high level, 2ch AUX, Coaxial, Optical Fibre, Digital BT, USB, OTG |
| Dynamic Range: |
≥102 dB |
| S/N: |
≥98 dB |
| Frequency Response: |
20 Hz ~ 20k Hz |
| Max Power: |
8 x 80W + 4 x 150W (bridge 2 x 300W) @ 4Ω |
| Nom Power: |
8 x 40W + 4 x 80W (bridge 2 x 160W) @ 4Ω |
| Output Signal Type: |
12ch AUX Output, 12ch High Level Output |
| Output Signal EQ: |
31 Levels EQ |
| Net Weight: |
2.4 kg |
| Dimension(LxWxH): |
261.4 x 196 x 46mm |
| Wired Remote Control |
Adaptable, sold separately ((FRC‑03） |
